Change Detection

How Kadoa detects and classifies data changes between workflow runs

To enable change detection, two things are required:

1. Your workflow must be scheduled (hourly, daily, etc.) or set to real-time mode. Configure scheduling in the UI or via Code.
2. Your workflow must subscribe to the data change event. Without this subscription, change diffs will not be delivered.

Make sure both conditions are met for change tracking to function.

Workflow Modes

Mode	How It Works	Availability
Scheduled	Compares data between runs (hourly, daily, weekly)	All plans
Real-time	Continuously monitors for changes	All plans

Both modes use the same change detection algorithm described below.

Algorithm Overview

The change detection process follows a three-phase matching algorithm:

1. Exact Matches: Objects that are completely identical (with whitespace normalization)
2. Partial Matches: Objects that are similar enough to be considered the same but with changes
3. Leftovers: Remaining objects classified as either new or removed

Matching Methods

Key Field Matching (Optional)

When key fields are configured in your schema, objects are matched based on these fields. ALL key fields must match for objects to be considered the same:

// Previous run
{
  "id": "12345",
  "title": "Product A",
  "price": "$100"
}

// Current run
{
  "id": "12345",           // Key field matches
  "title": "Product A Pro", // Changed
  "price": "$150"          // Changed
}

Result: changed - ID matches, so same object with updates

Key Field Behavior:

• Key fields defined with isKey: true in your schema
• Common key fields: id, url, link, sku
• Key fields should use scalar STRING, NUMBER, or LINK types
• If ANY key field changes, objects treated as removed + added (not changed)

Traditional Field Matching (Default)

When no key fields are configured, objects are matched if they share >50% of their fields:

// Previous run
{
  "name": "John Doe",
  "age": "25",
  "city": "New York"
}

// Current run
{
  "name": "John Doe",     // Same
  "age": "26",           // Changed
  "city": "New York"     // Same
}

Field Match Calculation: 2 out of 3 fields match = 66.7% > 50%

Result: changed - Field match ratio exceeds threshold

Notes:

• Only string fields considered in ratio calculation
• Empty fields and non-string values excluded

Change Types

Type	Description
Changed	Object matched but some fields differ
Added	Object exists in current run but no match in previous run
Removed	Object existed in previous run but no match in current run

How Changes Appear

In the UI

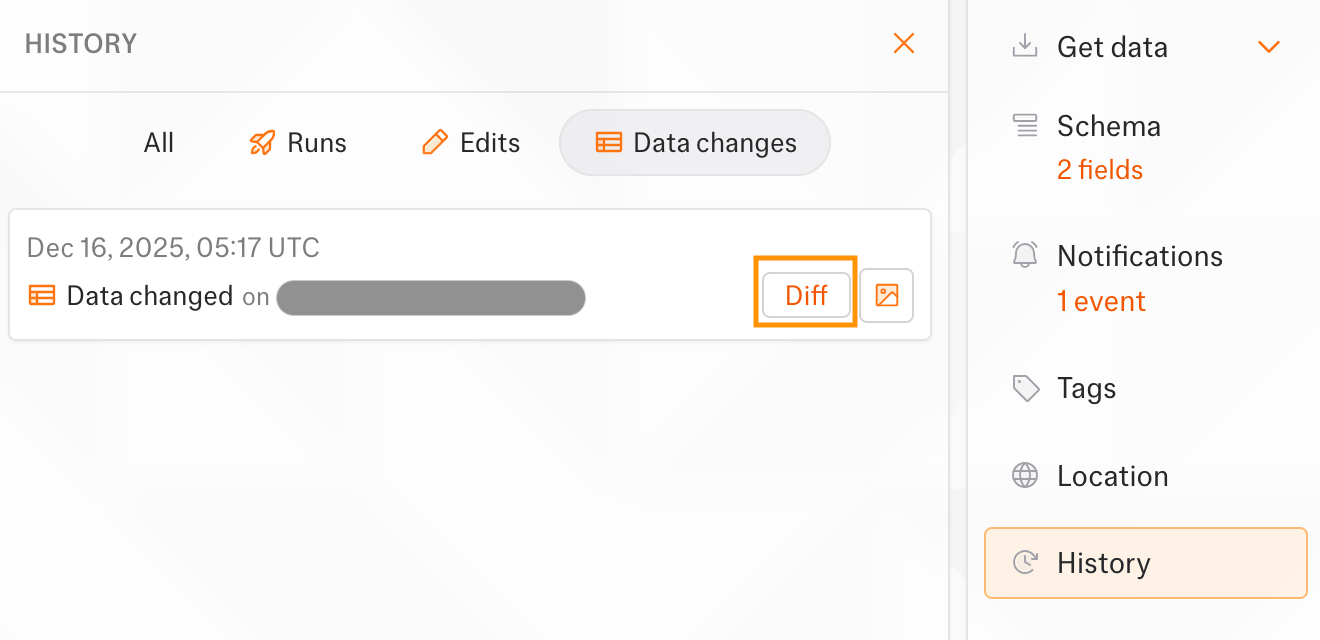

View detected changes directly in your workflow’s run history:

1. Open your workflow
2. Click the History tab on the right-hand side
3. Find a run with data changes
4. Click on the Diff component to view changes

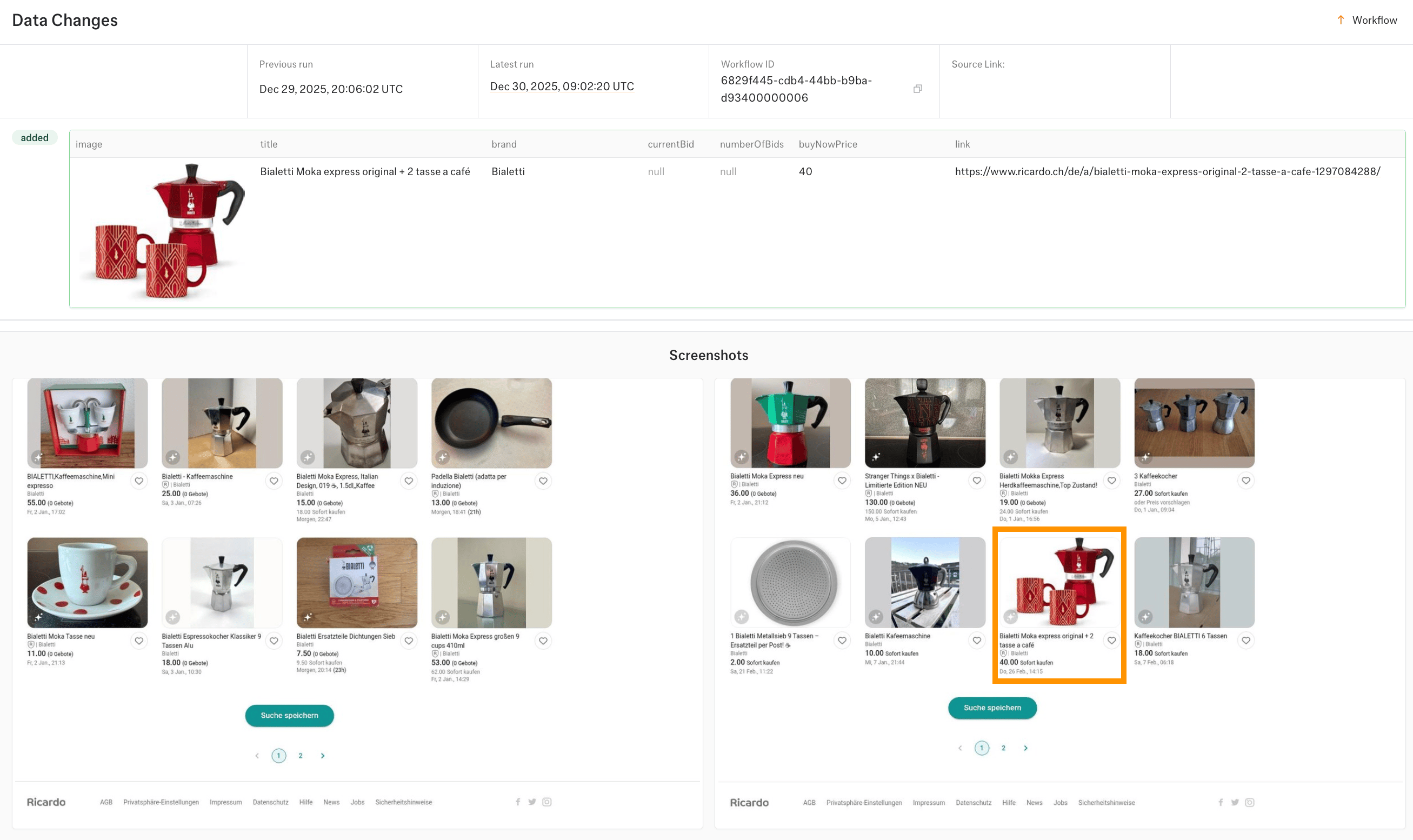

The diff view displays:

• Change type indicators (added, removed, changed)
• Visual diff highlighting for modified fields
• Timestamps for when changes were detected

See Data Delivery for notification channels, APIs, and payload formats.

Method Comparison

Method	When Used	Logic	Best For
Key Field Matching	Set isKeyField: true in schema	ALL key fields must match exactly	Reliable matching even with major content changes
Traditional Matching (Default)	No key fields configured	>50% of fields must match	Simple setup, works without configuration

Setup Data Change

Fields

Select which fields from your schema to monitor. Only changes to selected fields will trigger notifications. By default, Kadoa monitor all fields.

Change Types

Choose which types of changes to track:

Type	Description
Changed	Existing record was modified
Added	New record appeared
Removed	Record no longer exists

Conditions

Add conditions to filter notifications based on field values. Combine multiple conditions using logical operators.

Logical Operators:

• Any (OR): Notify if any condition matches
• All (AND): Notify only if all conditions match

Available Operators:

Operator	Description	Example
contains	Field value contains text	title contains “sale”
does not contain	Field value excludes text	title does not contain “expired”
equals	Exact match	status equals “active”
does not equal	Does not match	status does not equal “draft”
greater than	Numeric comparison	price greater than 100
less than	Numeric comparison	stock less than 10
before	Date is before value	published before 2025-01-01
after	Date is after value	published after 2025-01-01
in the last	Date within N days	published in the last 7 days
is empty	Field has no value	description is empty
is not empty	Field has a value	price is not empty

Date Filtering

Use before, after, or in the last operators to filter changes by date. Useful for monitoring news feeds or content where you only care about recent updates.

Your data must include a date field for date filtering to work.

Supported Date Formats:

• ISO: 2025-01-15 (recommended)
• US/EU: 01/15/2025, 15/01/2025
• Month names: Jan 15, 2025
• Timestamps: 2025-01-15T10:30:00Z

Retrieve Historical Changes

View change history for your monitoring workflows.

UI

1. Open your workflow

2. Click the History tab

3. Select a run to view its changes



API

The /changes endpoint returns all historical data changes. View full API reference →

GET https://api.kadoa.com/v4/changes

Filter by workflow and date range:

GET https://api.kadoa.com/v4/changes?startDate=2024-11-01T00:00:00Z&endDate=2024-11-30T23:59:59Z

Response Format

Each change includes a differences array:

{
  "differences": [
    {
      "type": "changed",
      "fields": [
        {
          "key": "title",
          "previousValue": "Old Title",
          "value": "New Title"
        }
      ]
    }
  ]
}

differences structure:

• type: Change type (added, removed, or changed)
• fields: All fields of the object

Field change properties:

• key: Field name
• value: Current value
• previousValue: Previous value (only for changed type)
