Kadoa webhooks allow you to receive notifications when data changes occur in your workflows. By subscribing to webhook events, you can automate actions based on these notifications. You can configure webhooks using either the API (for developers) or the UI (for visual configuration).

Configure via API

Set up webhooks programmatically using our REST API

Configure via UI

Set up webhooks visually through the dashboard

​
API Configuration

For developers who want to automate webhook configuration:

​
Step 1: Create a Webhook Channel

First, create a webhook channel by making a POST request to /v5/notifications/channels: View full API reference →
// POST /v5/notifications/channels
{
  "channelType": "WEBHOOK",
  "name": "Data Changes Webhook",
  "config": {
    "webhookUrl": "https://your-endpoint.com/webhook",
    "httpMethod": "POST",
    "auth": {
      "type": "bearer",
      "token": "your-secret-token"
    }
  }
}
The response will include an id in the channel object that you’ll need for the next step.

​
Step 2: Subscribe to Data Changes

Once you have the channel ID, subscribe to data changes events by making a POST request to /v5/notifications/settings: View full API reference →
// POST /v5/notifications/settings
{
  "workflowId": "<your-workflow-id>",
  "eventType": "workflow_data_change",
  "eventConfiguration": {},
  "enabled": true,
  "channelIds": ["<channel-id-from-step-1>"]
}

​
UI Configuration

For non-technical users who prefer a visual interface:

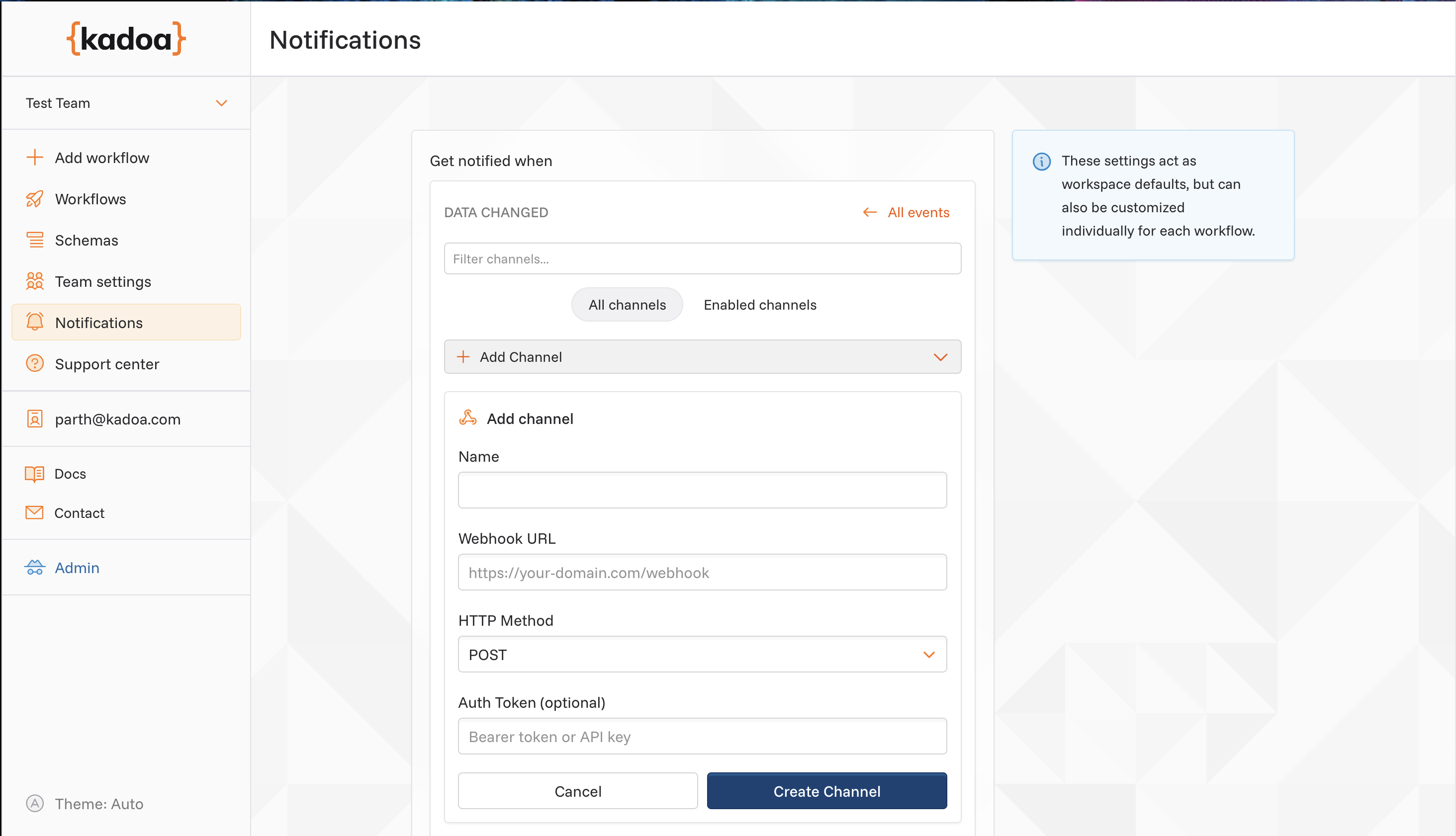

  1. Add a webhook channel via the notifications tab in the left sidebar or notifications tab in a workflow
Screenshot of webhook channel selection in workspace UI Screenshot of webhook channel selection in workflow UI

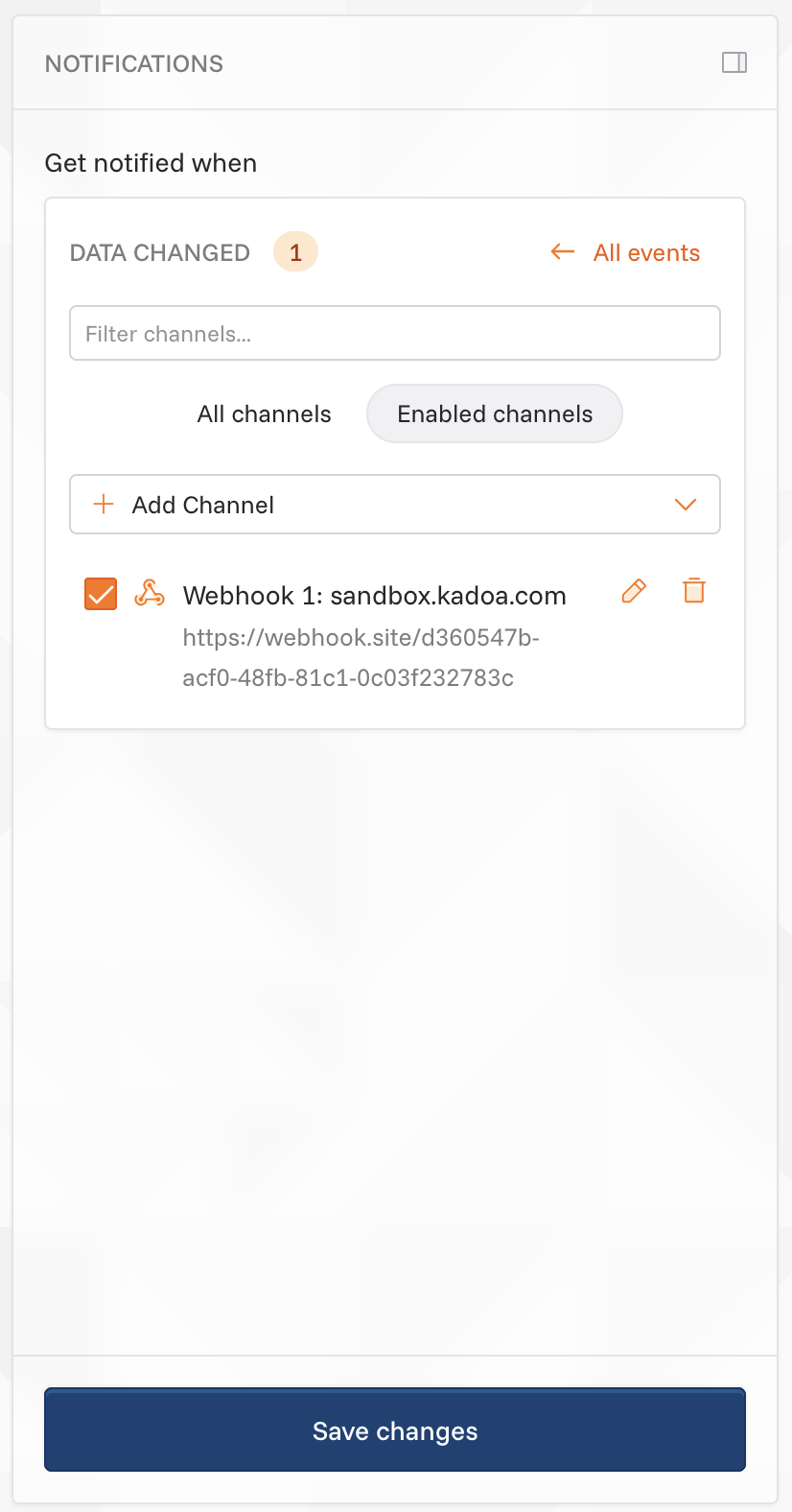

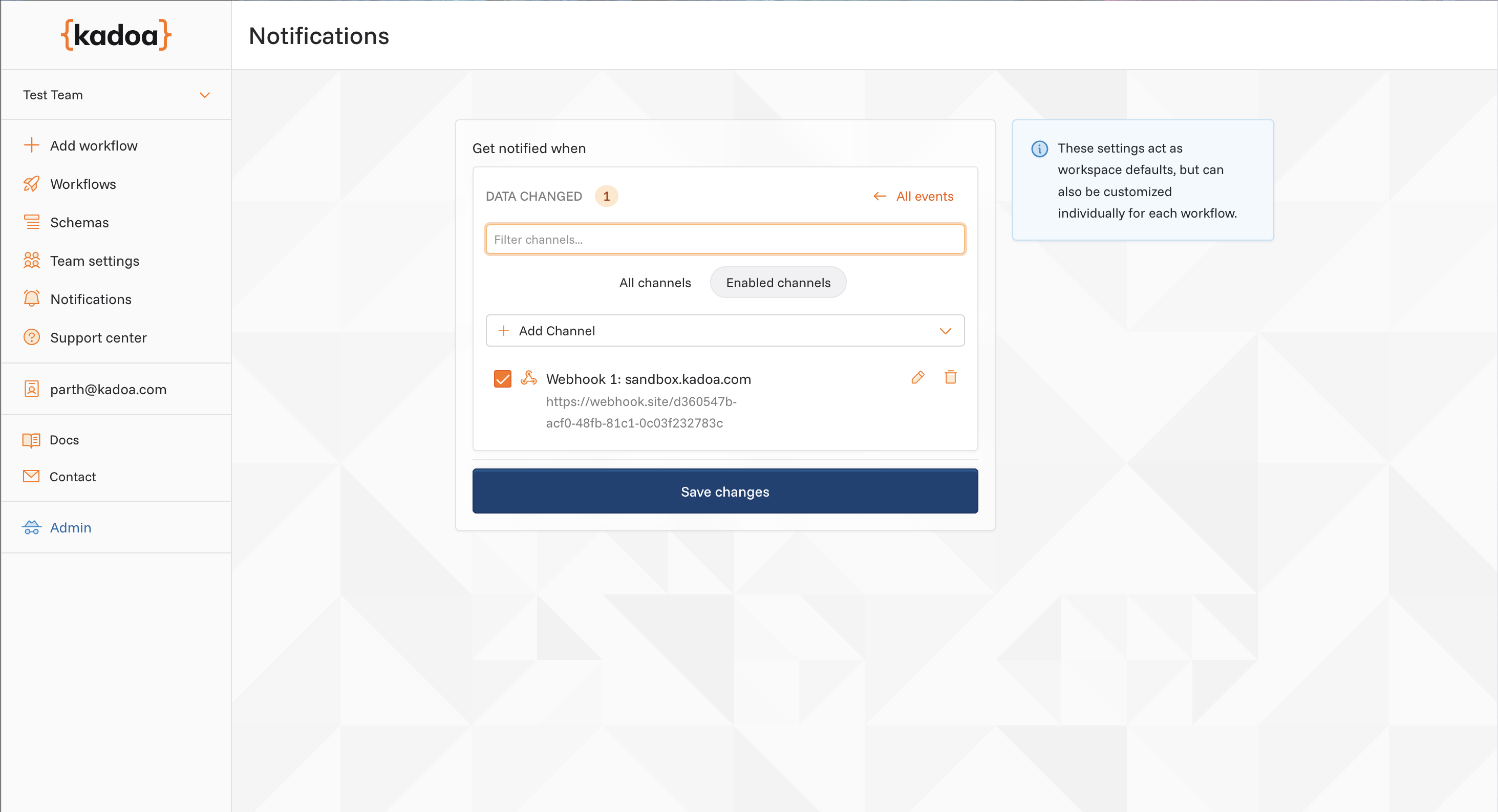

  1. Subscribe to events by selecting the webhook channel in workspace settings or workflow-specific settings
Screenshot of webhook channel selection in workspace UI Screenshot of webhook channel selection in workflow UI

​
Handling Data Change Events

When data changes occur, Kadoa sends a POST request to your webhook URL with this payload structure:
{
  "id": "change-id",
  "workflowId": "workflow-id",
  "data": [...],
  "differences": [...],
  "url": "https://monitored-page.com",
  "createdAt": "2025-01-09T10:00:00Z",
  "metadata": {
    "workflowName": "My Workflow",
    "tags": ["tag1", "tag2"]
  }
}
Ensure your webhook endpoint is accessible

​
Troubleshooting

​
Common Configuration Problems

  1. Check that the settings are enabled
  2. Ensure the linked channels are valid
  3. If you receive the error “A notification settings with this event type already exists” on POST request, please use the PUT endpoint instead.
